SAPPHIRE

sapphire_launch_850_bt

The Sapphire rocket was launched on June 23rd 2013. It is a single stage hybrid rocket using a solid seven-port polyurethane fuel grain oxidized by nitrous oxide. With a lift off mass of 202.7 kg it is the smallest rocket ever launched by CS. What it lacks in size it certainly packs in technology, as it is the most advanced rocket so far built by CS. The primary purpose of the Sapphire mission was to develop a navigation and thrust vectoring system capable of keeping the vehicle on the correct trajectory. Navigation is provided by a custom built navigation computer utilizing a 3-axis accelerometer and 3-axis gyroscope and thrust vector control is obtained by using a set of four servo-mounted copper jet vanes partially inserted into the rocket motor exhaust.

System specifications
The Sapphire rocket is based on CS’s proven polyurethane/liquid nitrous oxide hybrid rocket engine technology. It is based on a valveless design where the injector is capped off with a set of plugs held in place by a number of strings. As a pyrotechnic charge inside the combustion chamber is ignited, it rapidly burns through the strings and releases the plugs such that nitrous oxide is injected to oxidize the combustion. For a closer look download Sapphire in 3D here (opens with Blender, free from blender.org) or take a look at the specifications sheet.



Sapphire_render

Computer rendition of the 5.38 meter tall and 202.7 kg heavy Sapphire rocket.



The vehicle consists of many components. Just below the nose cone is a parachute and an inflatable floatation device. Below this is the avionics compartment housing the Guidance and Navigation Computer (GNC), GPS device and down-link radio. Below follows the nitrous oxide tank, the combustion chamber, nozzle and finally the jet vane assembly. Total lift off mass is 202.7 kg of which 58.1 kg is propellant. The total length is 5.38 m and the body diameter is 22 cm. Engine burn time is about 21 seconds in which the engine will deliver a total impulse of 103,000 Ns, propelling the vehicle to a projected maximum velocity of 380 m/s and a projected apogee of about 8.5 km.



Sapphire_welding

Peter Madsen welding the jet vane assemblies onto the nozzle skirt of the Sapphire rocket

Development and static test
As the hybrid engine used on the Sapphire rocket is based on a thoroughly tested design, development of the Sapphire rocket mostly consisted of development of the Guidance and Navigation Computer system and the jet vane control system. As the jet vanes are inserted directly into the exhaust they must be able to survive the extreme conditions and high temperature they operate in. For the Sapphire rocket the jet vanes were made of copper and were intentionally made large enough to simply absorb the heat without melting.

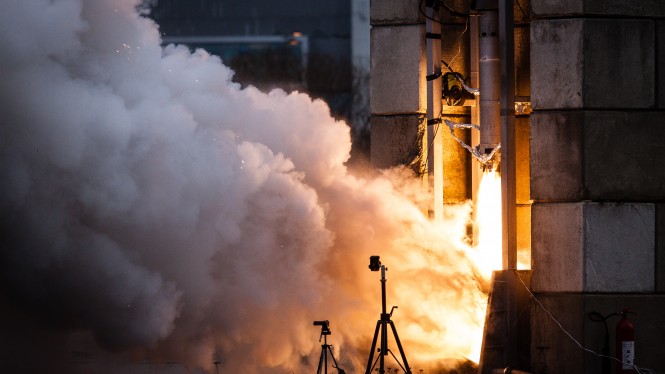

Sapphire_static_test

Static test of the Sapphire engine on December 30th 2011. During the test the jet vanes carried out a predefined deflection routine and the resulting force was measured.



It is no simple matter to calculate the force excerted on a jet vane from the exhaust of a hybrid rocket engine, it is however of utmost importance for the control system to know this, in order to apply the correct jet vane deflection as a response to a necessary trajectory correction. Thus, a full scale static test was performed on December 30th 2011, where the jet vane forces were measured as a function of deflection angle and engine pressure (which varies during the burn).

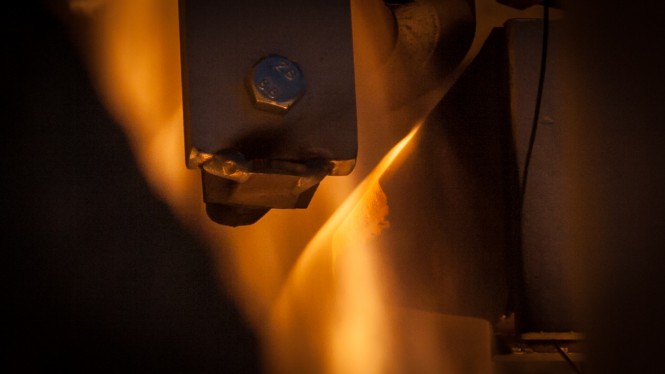

Sapphire_vane_closeup

Close up image of a prototype jet vane hard at work, October 22nd 2011.



Launch of the Sapphire rocket

Sapphire_flight

Sapphire lifts off from Sputnik and engages its thrust vector control system, June 23rd 2013.



The Sapphire rocket was launched on June 23rd 2013. Trajectory control was implemented in such a way that the Guidance and Navigation Computer would aim at a point in space directly above the vehicle at the moment of lift off.

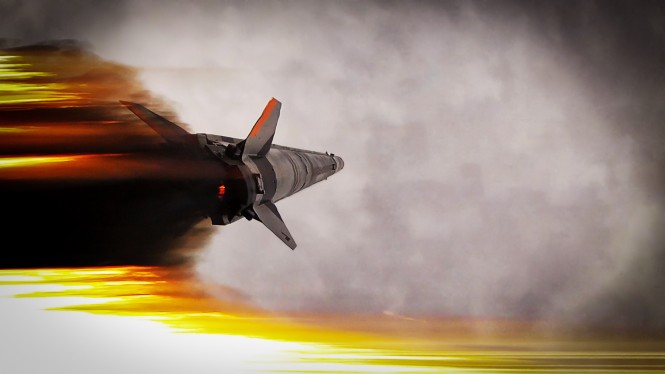

Sapphire_tower

Sapphire clears the launch rail and soars to the skies. Screen grab from a GoPro camera mounted on the top of the launch rail.



The vehicle reached a maximum speed of 344 m/s (Mach 1.03) and apogee occurred at an altitude of 8,253 m. During flight the guidance and thrust vector control performed admirably! As the engine burned out after 20 seconds the vehicle was just 90 meter off target and at apogee it was 191 meter off. This being CS’s first attempt of guidance and thrust vector control, it is a far better result than expected, and it paves the way for thrust vector control of the HEAT-2X rocket scheduled for launch in mid-2014.

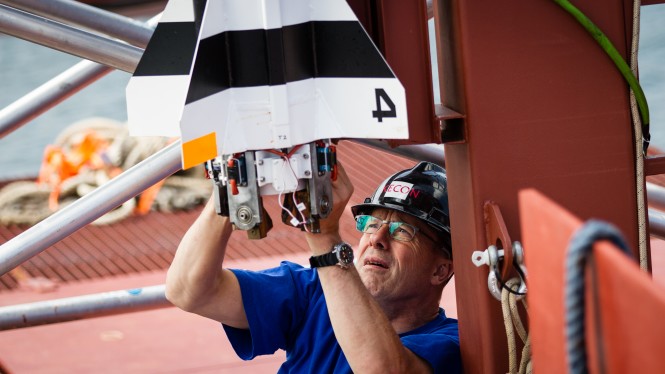

Sapphire_flemming_vanes

Flemming Rasmussen installing the four jet vanes on Sapphire in the harbor of Spaceport Nexø, June 22nd 2013.



A number of videos of the launch are available below. The thrust vectoring system was programmed not to engage until the vehicle had cleared the launch rail. Thus, when the system engages it leads to a fairly noticeable tail “whip” when the vehicle is just a few meters clear of the launch rail.

Short video of the Sapphire launch:

Graphic flight visualization based on navigation system data:

In depth coverage of the Sapphire mission:
